GA3 can be used to find the top and bottom relevant parts of a sample. These values can narrow down the scanned Z-range in Jobs by skipping the irrelevant parts of the sample. This is useful for fundamentally speeding up the sample acquisition.

Figure 716.

Figure 717.

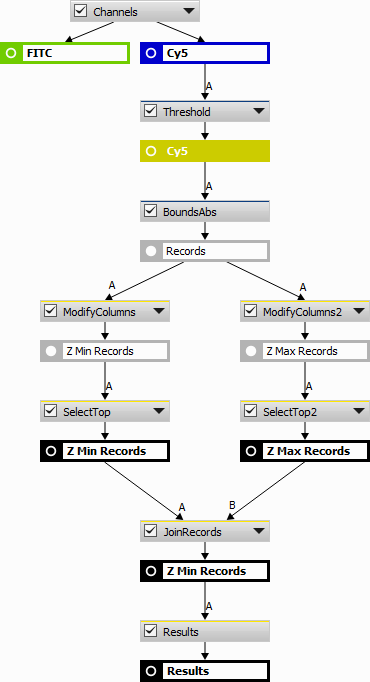

Figure 718. GA3 graph definition.

First of all 3D threshold is applied to the channel where the sample is visible.

Figure 719.

Bounds are found for each detected object.

Figure 720. Bounds Abs action.

Only the minimum and maximum Z are selected using the Modify Columns action.

Figure 721. Modify Columns actions with their results below.

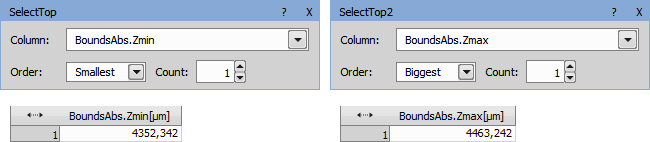

Select Top action is used for selecting only the smallest and biggest value in their result.

Figure 722. Select Top actions with their results below.

Records are put into one table using the Join Records action.

Figure 723. Join Records action with the result below.

GA3 recipe is saved using Save As.

Figure 724. Saving the GA3 recipe.

Jobs Explorer (Introduction to Jobs Explorer) is opened and the tasks are dragged into the definition to form the following job.

Figure 725. Job Definition using the GA3 recipe in the General Analysis 3 task.

Capturing is set in the Acquisition > Capture Definition task. To obtain the Step value, Z-Stack > Define Z-Stack is set. Then the first stack is captured by Acquisition > Capture inside the Z-Stack > Z-Stack Loop.

Then the GA3 Processing > General Analysis 3 Parameters are defined using the minimum and maximum results from the GA3 recipe.

Figure 726.

Z-Stack > Z-Stack Bottom and Top then uses the GA3 recipe From and To values and sets the Step calculated from the Z-Stack > Define Z-Stack.

Figure 727. Z-Stack > Z-Stack Bottom and Top task using parameters from different sources.

Another Z-Stack > Z-Stack Loop is added allowing to capture the narrowed Z-stack by Acquisition > Capture. Job can be executed ( Run Job) and only the Z stack series falling into the GA3 threshold are captured and saved.
