3D Measurement

(requires: 3D Measurement)

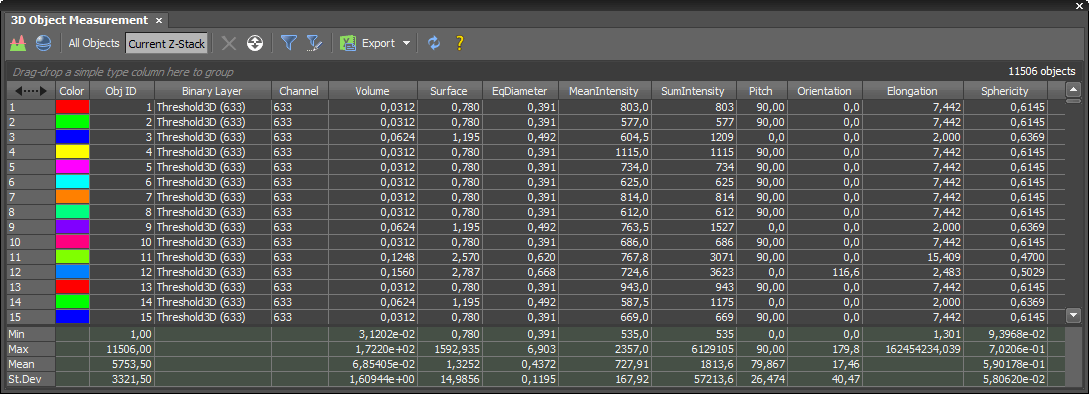

2D binary layers on a Z-serie can be connected to 3D objects. Spatial characteristics of these objects can be examined within the Measure > 3D Object Measurement window. This window allows you to create 3D binary objects, measure their features and export the results (e.g. to MS Excel). Which features are displayed in the columns can be determined using functions from the context menu over the measurement table.

See also Measurement Features.

Options

Define threshold 3D

You can define the threshold to create a 3D binary objects according to the color channel and/or the size of objects. The appearing window also provides the possibility to use Smooth, Clean and Fill holes functions, as well as to highlight or choose just one object.

Connect 3D Objects

Create 3D objects by connecting existing binary layers.

All Objects

Shows all the objects in all the Z-stacks.

Current Z-Stack

Shows only the objects of currently selected Z-stack.

Delete Selected Object

Deletes selected object in the measurement table.

Invert Selection

Inverts the selection of the objects in the image as well as in the table.

3D Object Measurement to Excel

Allows you to export the measurement results to Excel.

Refresh Measurement

Refreshes the measurement results.

Help

Opens this help page.

Context menu over a selected row

Highlight Objects

Flashes the selected object in the source image so that it can be easily found amongst the others.

Select All

Selects all available objects.

Unselect All

Clears the object selection.

Invert Selection

Inverts the object selection.

Delete Selected

Deletes the selected objects.

Keep Selected Only

Deletes all but the selected objects.

Set Object as Reference Object

Selected object is set as a reference object. Distance from this object to others can be measured using the RefDistance feature.

Context menu over a column header

Hide Column

Hides the selected column.

Show All Columns

Displays all available measurement features as columns in the table.

Show Column

Can be used to manually add measurement features as columns in the table.

Show Default Columns and Order

Resets the table columns into their default state.

Define Visible Columns...

Opens a dialog window used for defining which measurement features are shown by default.
