Tracking
Shows the time and center of the 2D/3D object for tracking.
Shows the time and center of the 2D/3D object for tracking in absolute (stage) coordinates.
Shows the time and the center of gravity of the 2D/3D object for tracking.
Shows the time and the center of gravity of the 2D/3D object for tracking in absolute (stage) coordinates.
Tracks 2D/3D binary objects that must overlap between frames/volumes. In an ambiguous situations, the biggest intersection wins. This is suitable especially for slowly moving (compared to the framerate) big cells (where the center is not much representative).
Tracks non overlapping 2D/3D objects represented by time and position. Please see Binary Tracking Step by Step explaining the available parameters.
Calculates derivation of the value in time ((Fi - Fi-1) / (dT)), while requiring Diff Time.
Please see Tracking Output Calculation.
Returns a table with motion features.

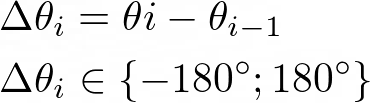

List of Motion Features
Figure 848.
Figure 849.
Figure 850.
Figure 851.
Figure 852.
Figure 853.
Figure 854.
Figure 855.
Figure 856.
Figure 857.
Figure 858.
Figure 859.
Figure 860.
Figure 861.
Figure 862.
Figure 863.
Figure 864.
Figure 865.
Figure 866.
Returns a table with track features. Input of this node is a table after Tracking > Tracks > Accumulate Tracks node is applied. Output of this node are rows (number of rows is equal to the number of groups on the input - i.e. tracks).
List of Track Features
Figure 867.
Figure 868.
Figure 869.
Figure 870.
Figure 871.
Figure 872.
Figure 873.
Figure 874.
Figure 875.
Figure 876.
Creates a table with all frames and groups them by the track. Enables filtering based on the number of segments (Min segment count ).
Creates a table with points of MSD (Mean squared displacement) curve. Select the Track ID, Time and Position columns. Before analyzing using this node use Accumulate Tracks (Tracking > Tracks > Accumulate Tracks) to group by βTrack IDβ.
MSD Curve is generated for each group separately. If you want to have one curve for each track, group the table by Track ID. If you want one curve in total, ungroup the table.
Mean square displacement can also be used from the Intra-Nuclear Single Particle Tracking (Mean square displacement (MSD)).
Populates the standard NIS-Elements Tracking Control (Tracking Options) with the connected tracking table. Tracking data are saved in the assigned document.
(requires: Object tracking)
Tracking operates frame-by-frame (whole timelapse is not needed β useful for JOBs). In order to get all frames for the inspection or measurement, use the Data management > Basic > Accumulate Records node.
