Creating Report

  1. Click Report Input to open the following window:

    ../img/eng/filter.21_reportinput.png image

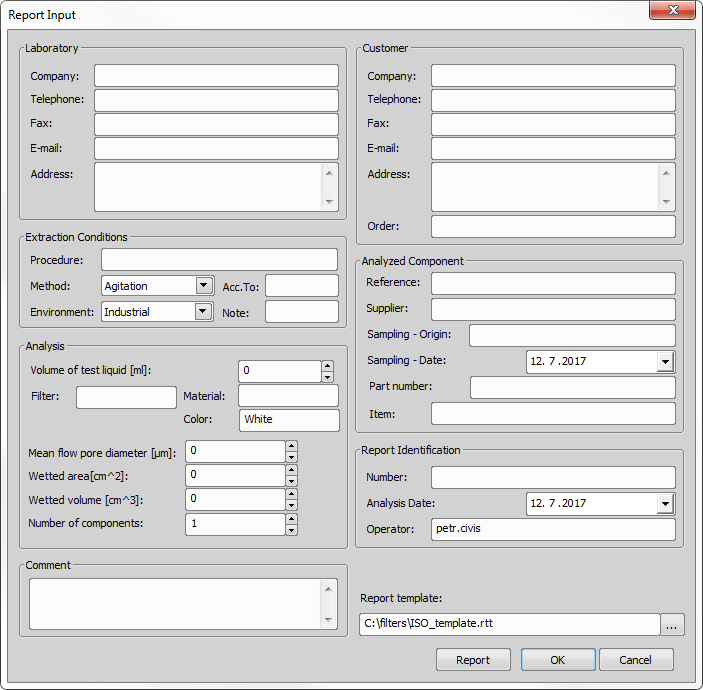

    Figure 364. Report input form

    It is recommended to fill all the metadata fields but it is optional. When defining a report, the path to a Report template (“.rtt”) file has to be specified in the bottom field of this window.

    Note

    Click Report to open the specified report in the Report Generator. Here it can be adjusted and saved as a new report template.

  2. Click Generate Report to generate the report using the report template specified in the previous step.

    ../img/eng/filter.22_reportexample.png image

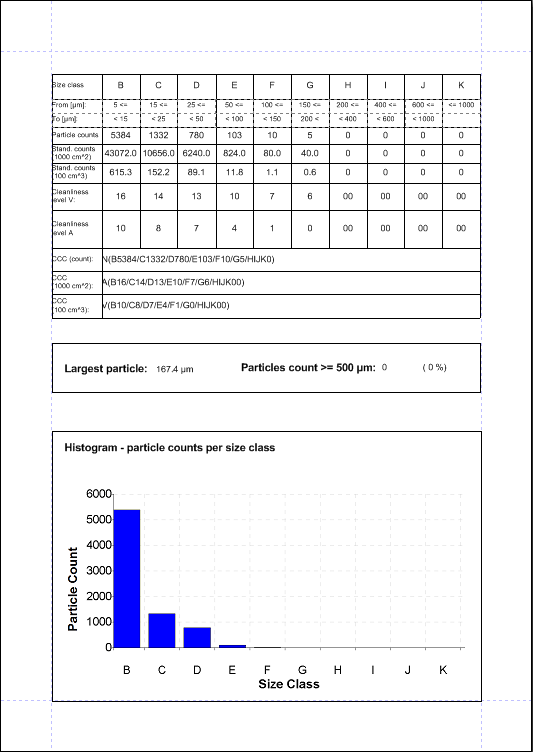

    Figure 365. Example of a report

  3. Results can be exported to MS Excel by the Excel Report (MS Excel application needs to be installed on your PC, the layout of the data which are being exported cannot be modified). Results can also be exported to PDF or printed directly in the Report Generator.
