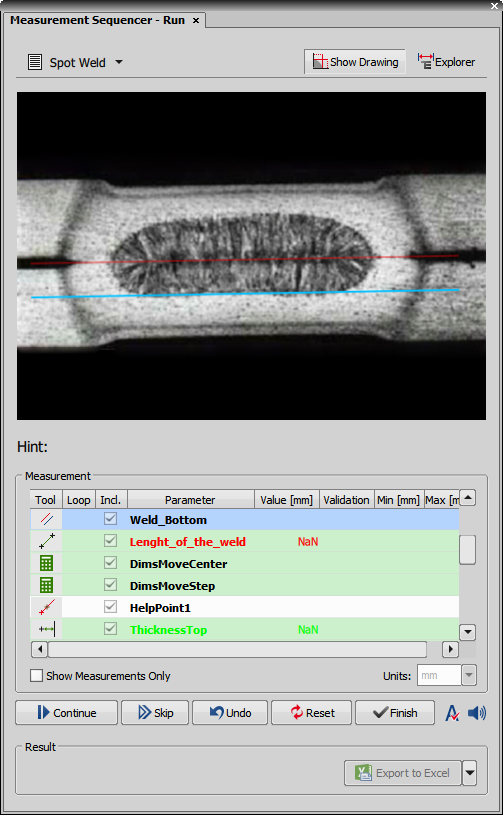

Group Filter

Filters the measurement based on the selected measurement group.

Select Definition

Select a measurement sequence definition from the list.

Show Drawing

Displays a diagram showing the defined measurement.

Explorer

Opens the Measurement Explorer (Measurement Explorer) organizing the previously defined measurement sequences (see Measurement Sequencer - Definition).

Displays the name of the currently measured parameter together with its help text.

Only the selected measurement items will be included in the measurement. To check all items, reveal the context menu and select Include All.

If checked, only the measurement items are shown in the table.

Sets the measurement units.

Measure

Executes the currently loaded measurement sequence.

Continue

Resumes the measurement sequence.

Skip

Skips the current measurement step.

Undo

Jumps one step back in the current measurement.

Reset

Resets the current measurement.

Finish

Finishes the current measurement and saves its result.

Hide already measured objects

Hides objects in the image which were measured so far.

Sound

Turns the object definition sound on/off.

Displays the result of the current measurement.

Export to Report/Excel/File/Clipboard

Exports the measurement data into a Report, Excel, File or Clipboard. Click on the black arrow next to the button to select the exporting method. Then click on the button itself to execute the selected export.

When exporting using the Export to Report method, a new window opens showing the report which can be printed or saved as .pdf or .html. Select Report Template selects a template for the report being exported (Report Editing).

To export measurements into a .csv file, select Choose File..., navigate to a place where the file will be saved, name it (File name), click Save, select Export to File from the drop-down menu and click on the Export to File button to execute the export.

If Export automatically is checked, the currently selected export is performed once the measurement is finished.
